Trubková vysokoteplotní pec
Montážní konfigurace

Carbolite Gero dodává široký sortiment montážních konfigurací trubkových vysokoteplotních pecí, vyhovujících jakékoliv specifikaci zákazníka.

Carbolite Gero TF, TS and TG range tube furnaces are supplied in a horizontal configuration as standard.

Carbolite Gero FHA, FHC, HTRH, HTRH-3, FST and FZS range tube furnaces are supplied in a horizontal configuration as standard. HTRH and HTRH-3 furnaces can not be tilted.

Carbolite Gero HTRV and HTRV-A tube furnaces are supplied in a vertical configuration as standard and can not be tilted.

Tube furnace body on top of control box

Tube furnace body on top of control box

The following models have the furnace body mounted on top of the control box:

  • TF mini;
  • TF & TS small;
  • TF & TS medium up to and including 600 mm heated length;
  • TF 1600°C;
  • TG small and medium.
The furnace body can be easily dismounted from the control box. The 2 m long interconnection cables that connect the furnace body to the control box allow the furnace control box to be positioned remotely from the furnace body. The interconnecting cables of the Ø 125 & 200 mm models can be easily unplugged.

Tube furnace body and separate control box

Tube furnace body and separate control box

The following models have a separate control box:

  • TF & TS medium 800 mm heated length and above;
  • TS large.
  • FHA, FHC, FST & FZS
  • HTRH & HTRH-3
  • HTRV & HTRV-A

Vertical packages

Optional ‘vertical packages’ can be ordered for TF, TS and TG range furnaces to mount the furnace body in a vertical orientation.

L-stands are available for vertical use for FHA, FHC, FST, FZS tube furnaces.

Stands are available for HTRV and HTRV-A tube furnaces as sole option and are part of inert gas packages with long work tubes.

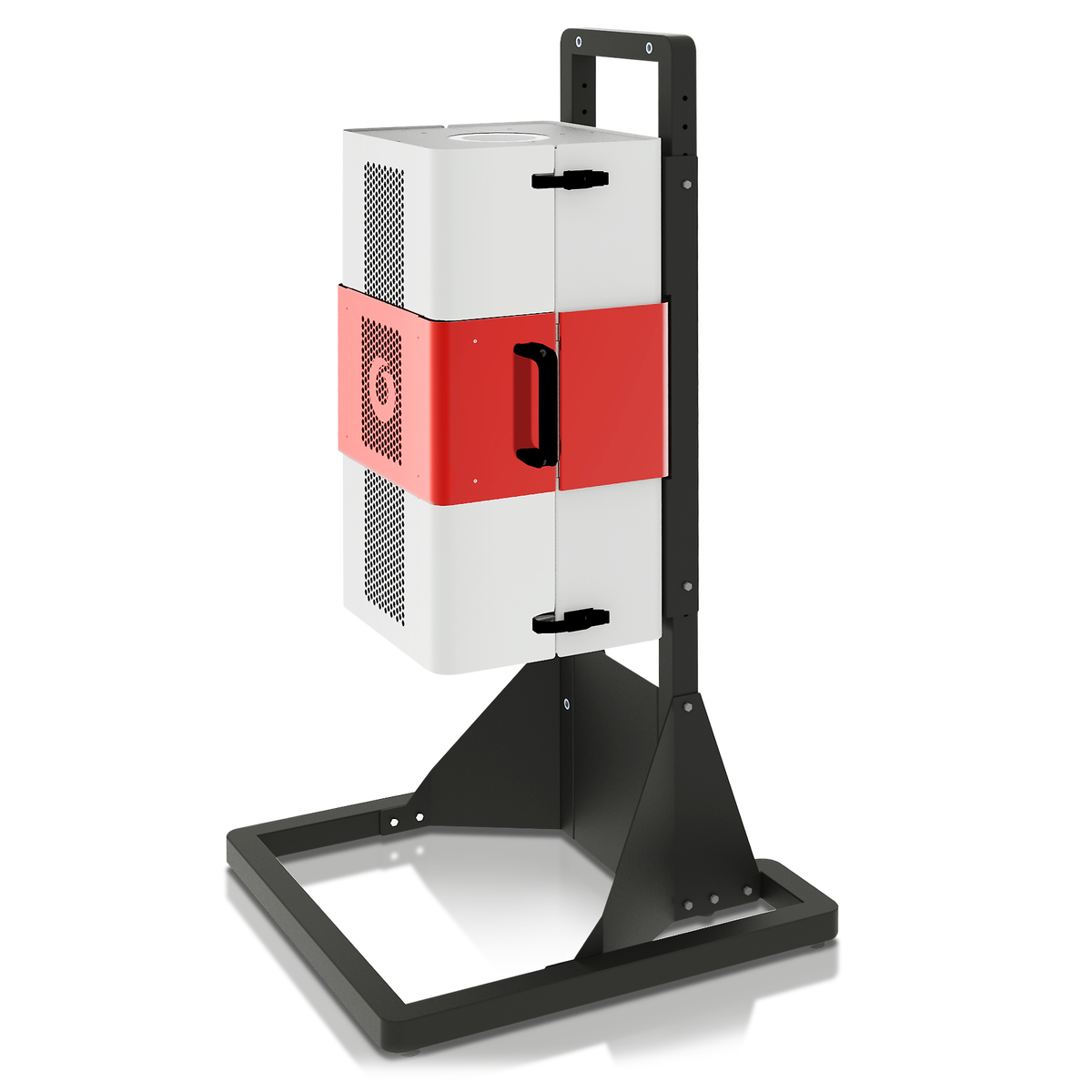

TS range with vertical stand package. This includes the vertical tube support components.

TS range with vertical stand package. This includes the vertical tube support components.

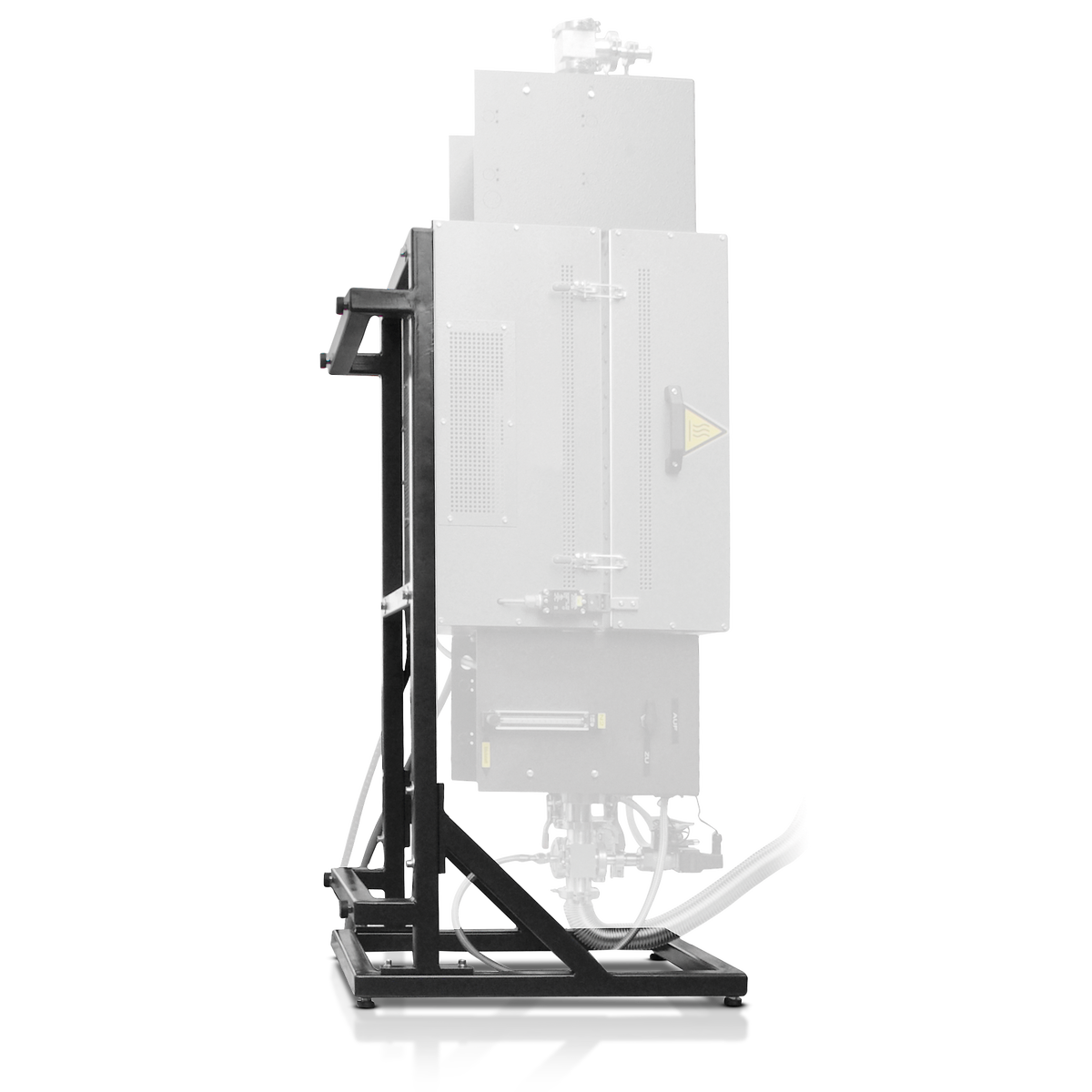

FHA, FHC, FST, FZS range with L-stand

FHA, FHC, FST, FZS range with L-stand

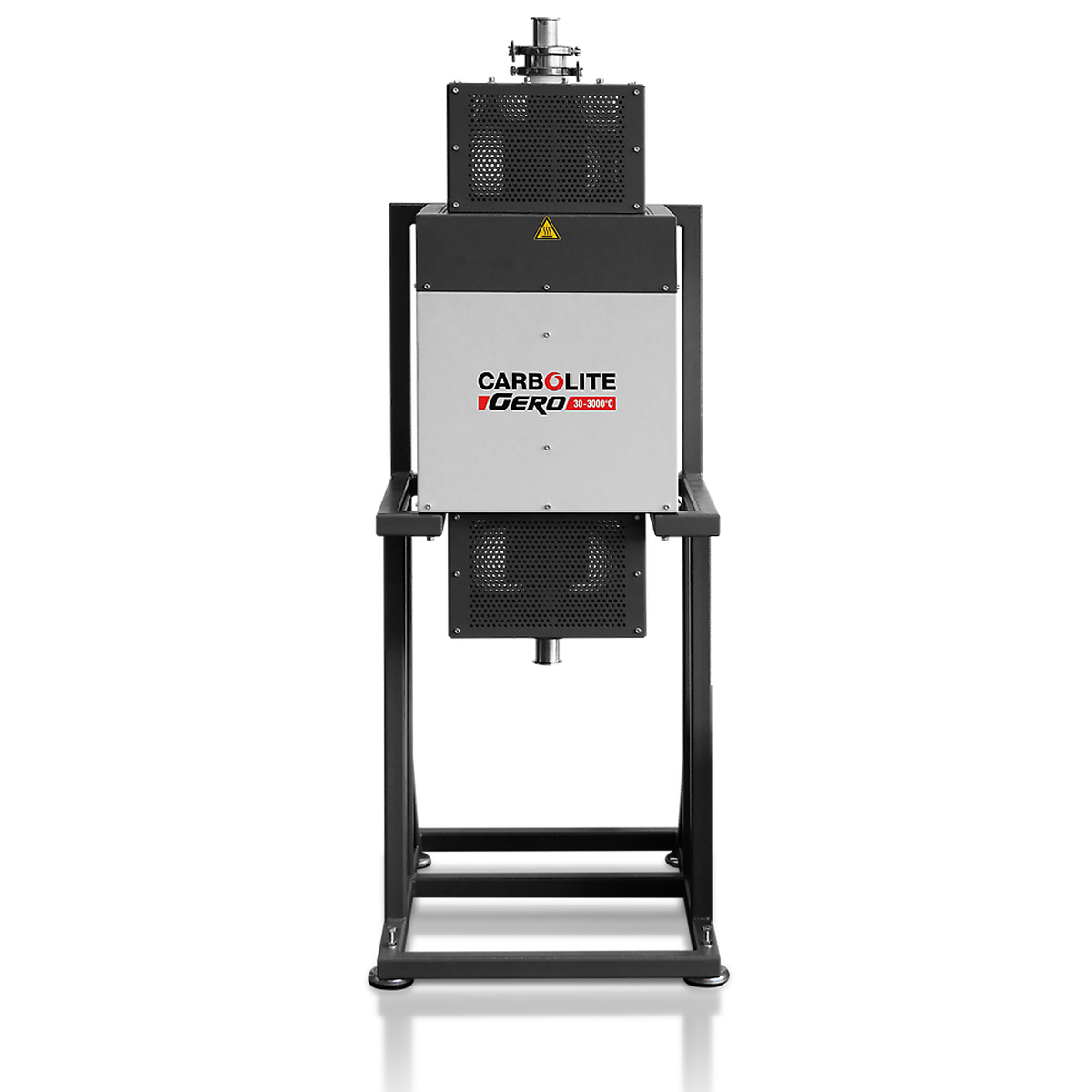

HTRV range with stand and optional inert gas package

HTRV range with stand and optional inert gas package

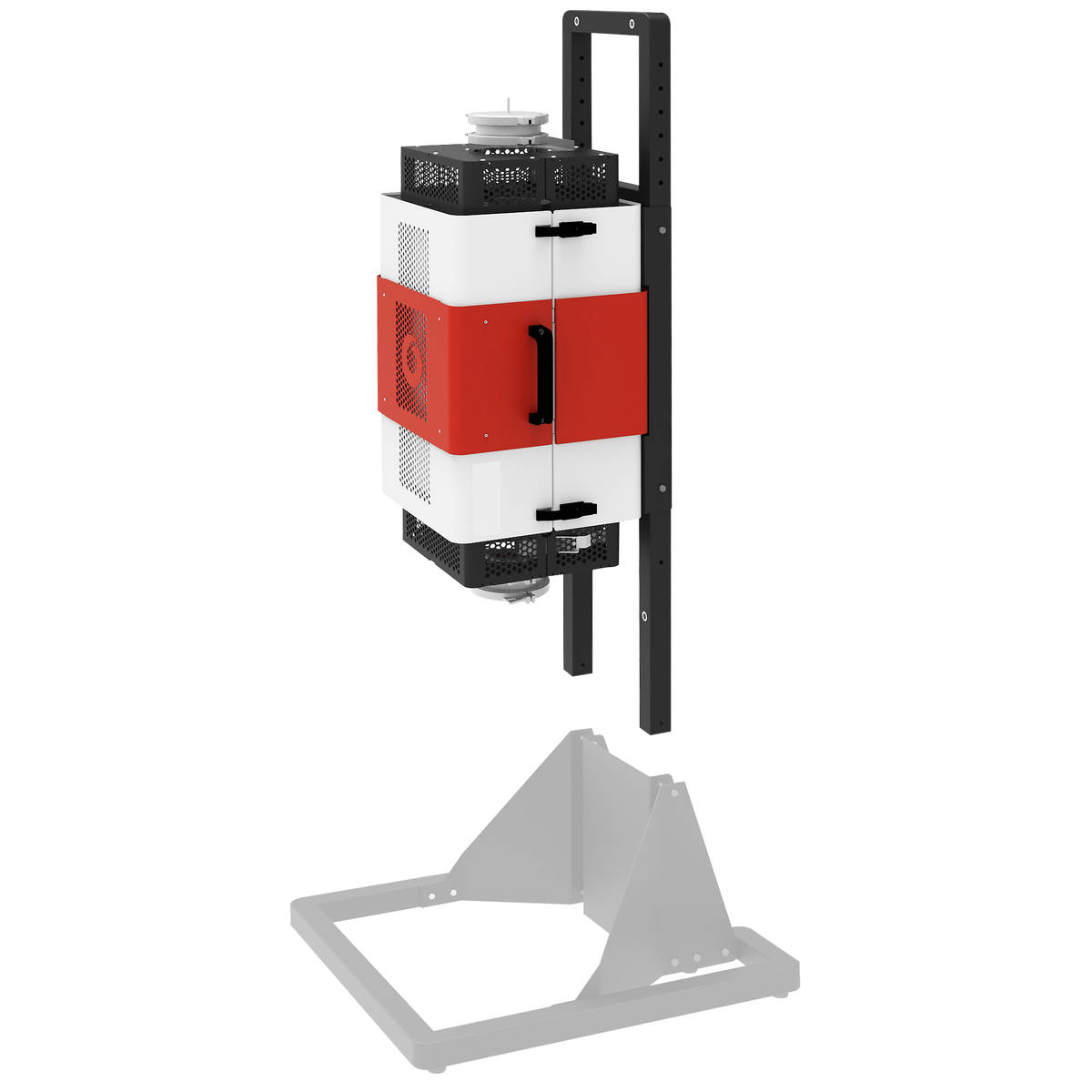

The base of the TS, TF & TG vertical stand package can be removed. The vertical frame can be used to mount the furnace to other equipment.

The base of the TS, TF & TG vertical stand package can be removed. The vertical frame can be used to mount the furnace to other equipment.

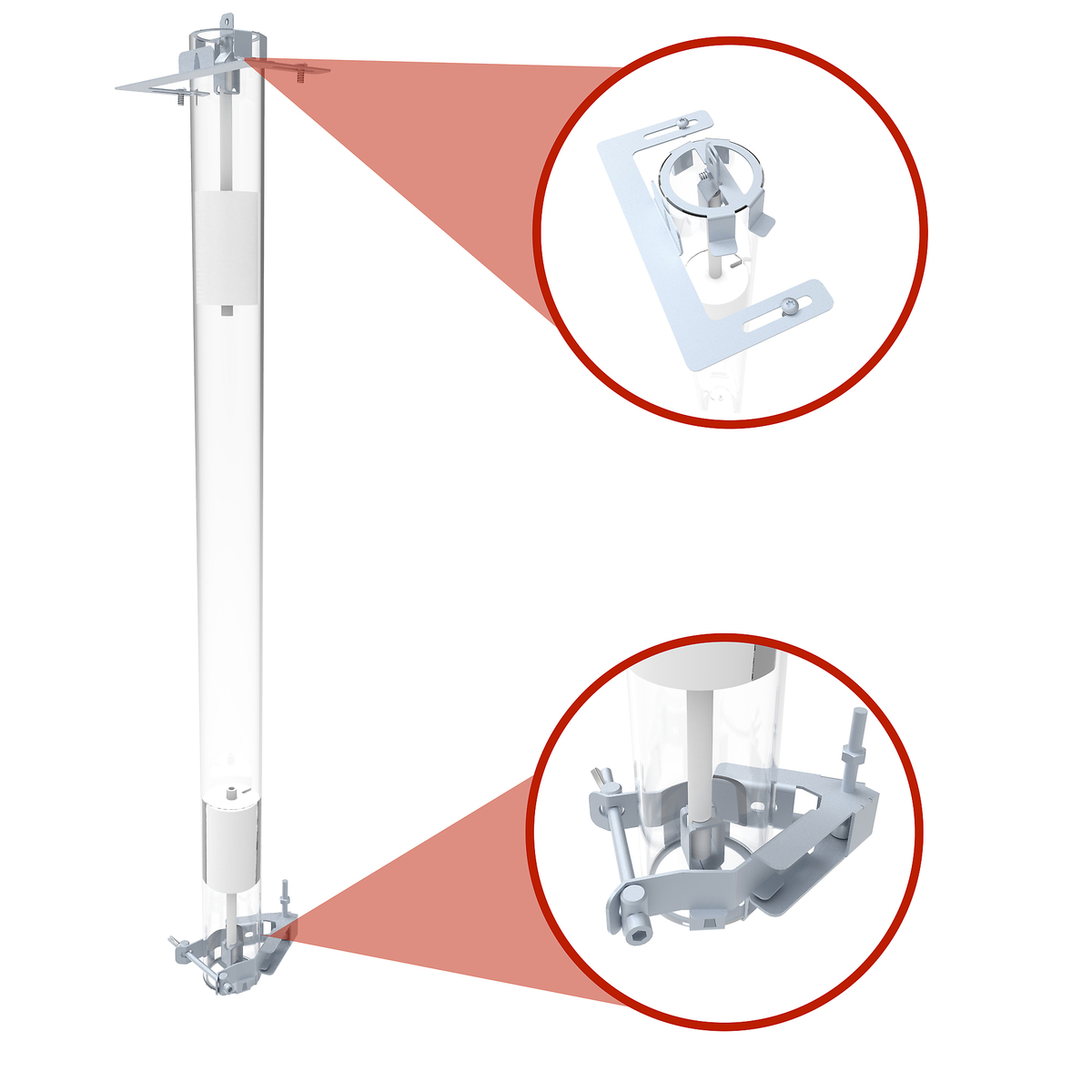

The vertical tube support package for TF, TS & TG without stand or mounting bracket is also available

The vertical tube support package for TF, TS & TG without stand or mounting bracket is also available
